SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

Name: SMD2121 Outdoor Advertising LED Display Screen P595 IP33 Frontage Lighting
Brand: JuCaiYuan
Price: 1 USD

Quality SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting for sale

Brand Name : JuCaiYuan

Model Number : P3.91 P4.81

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Overview

Quick Details

Application:: advertisement

Color:: full color, full color

Panel Size:: 576*576mm

Pixel Pitch:: 3mm

Place of Origin:: Guangdong, China

Model Number:: P3

Brand Name:: JUCAIYUAN

Display Function:: Video

Pixels:: 3mm

LED chip:: Kinglight SMD2121

Life span:: 100000H

Refresh rate:: 1920HZ/3840HZ

Warranty:: 2 Years

Brightness:: ≥2000cd/m2

Control system:: Novastar /linsn/colorlight

Packaging & Delivery

Packaging Details: flight case ,exported carton. wooden case, Certainly the flight case will be better. It's all up to customer's requirements

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	12	To be negotiated

SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

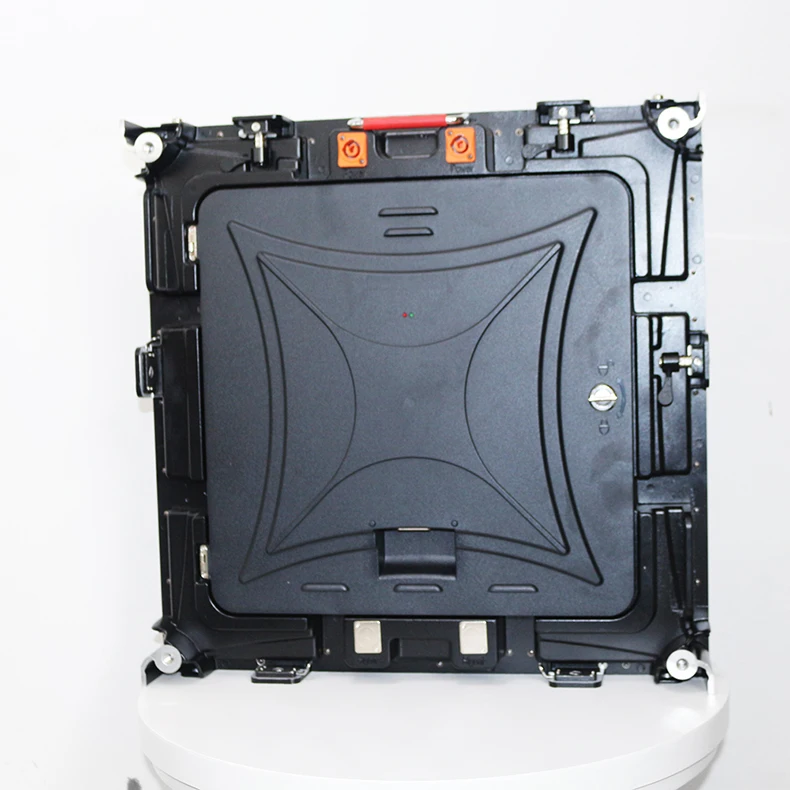

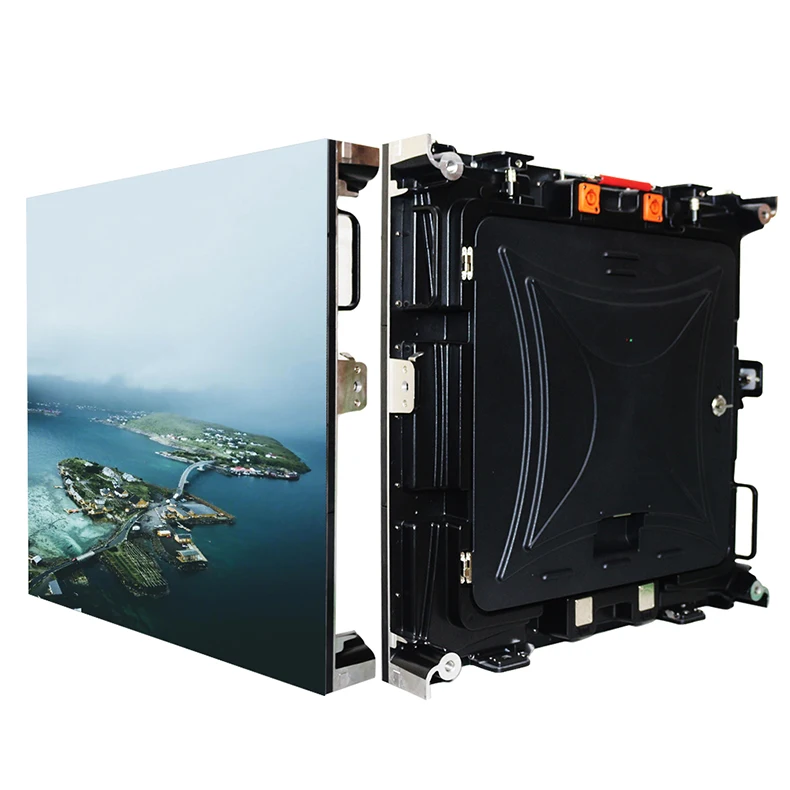

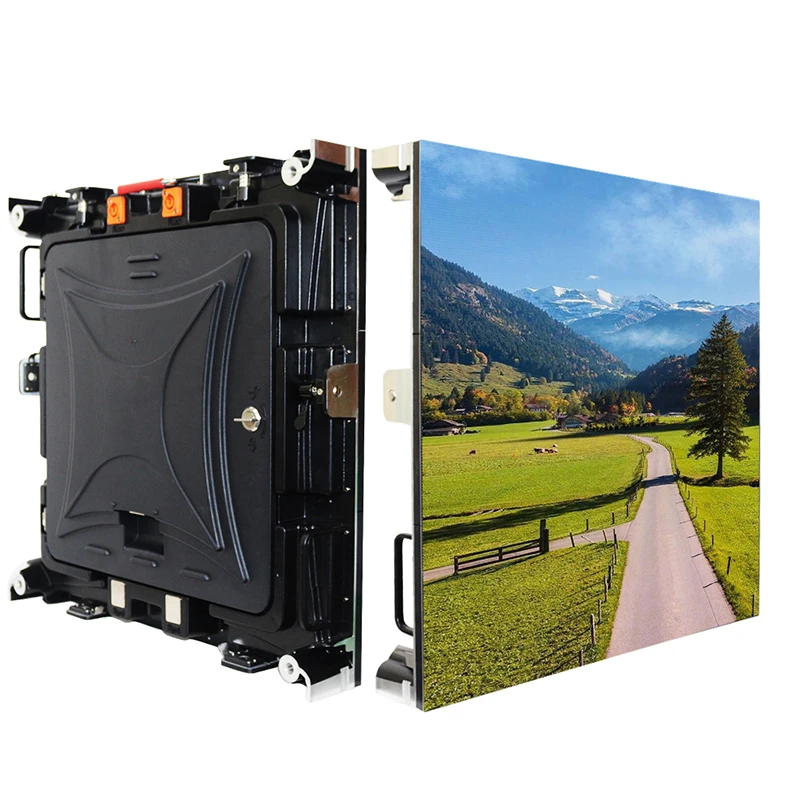

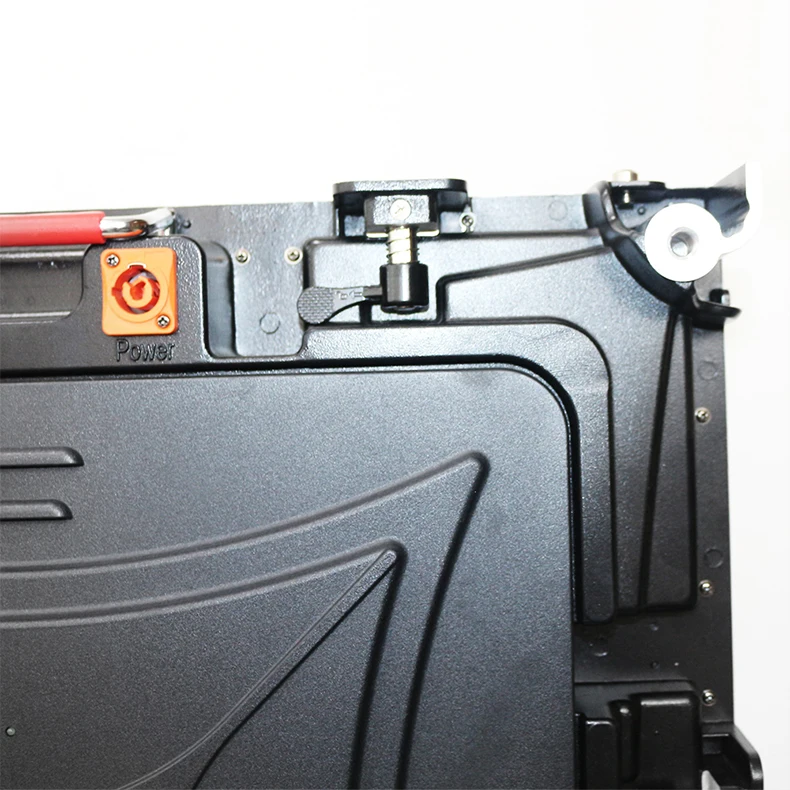

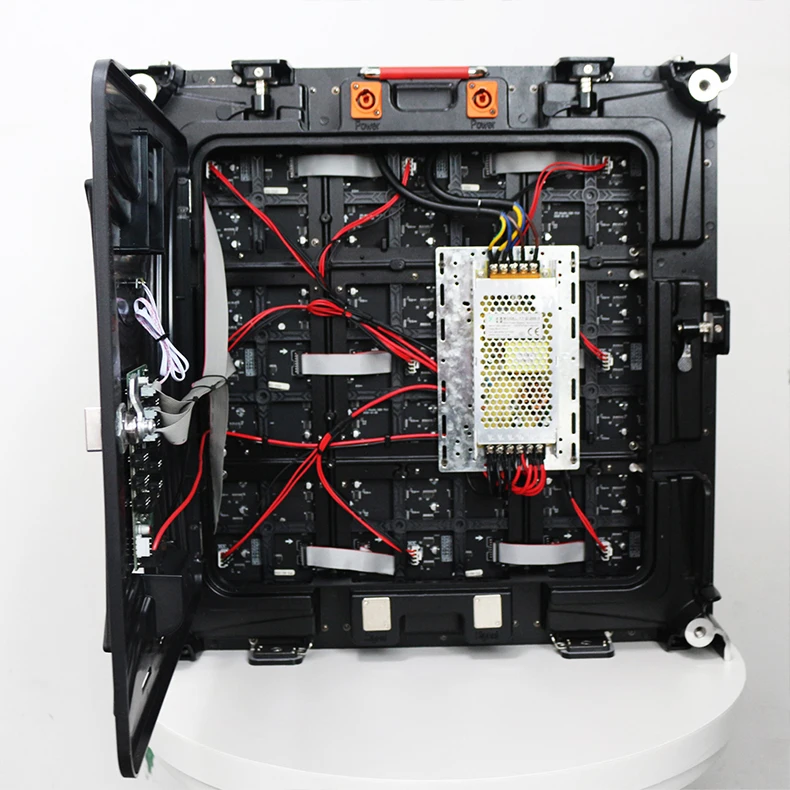

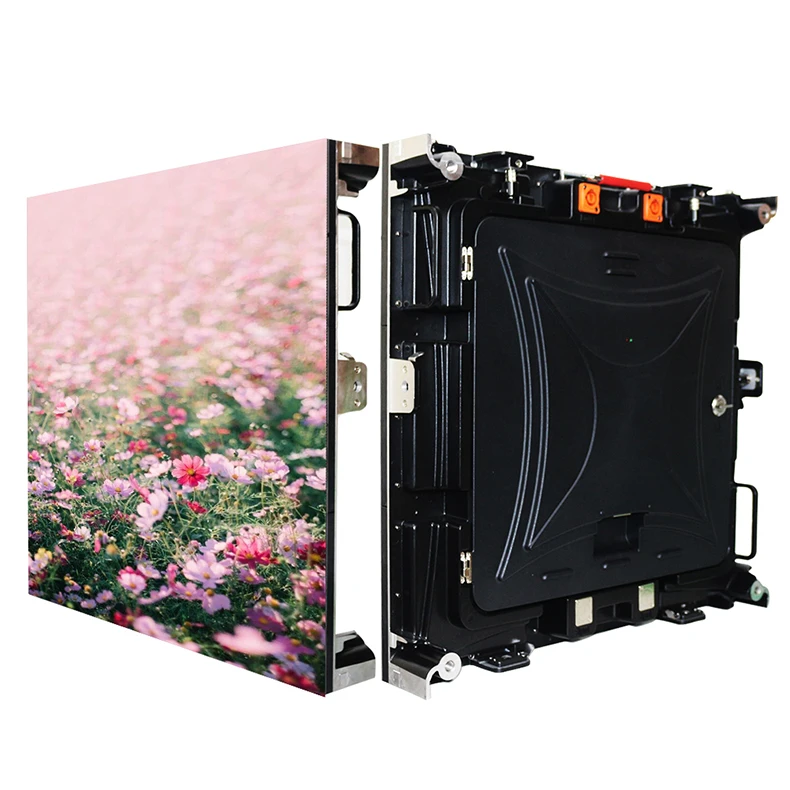

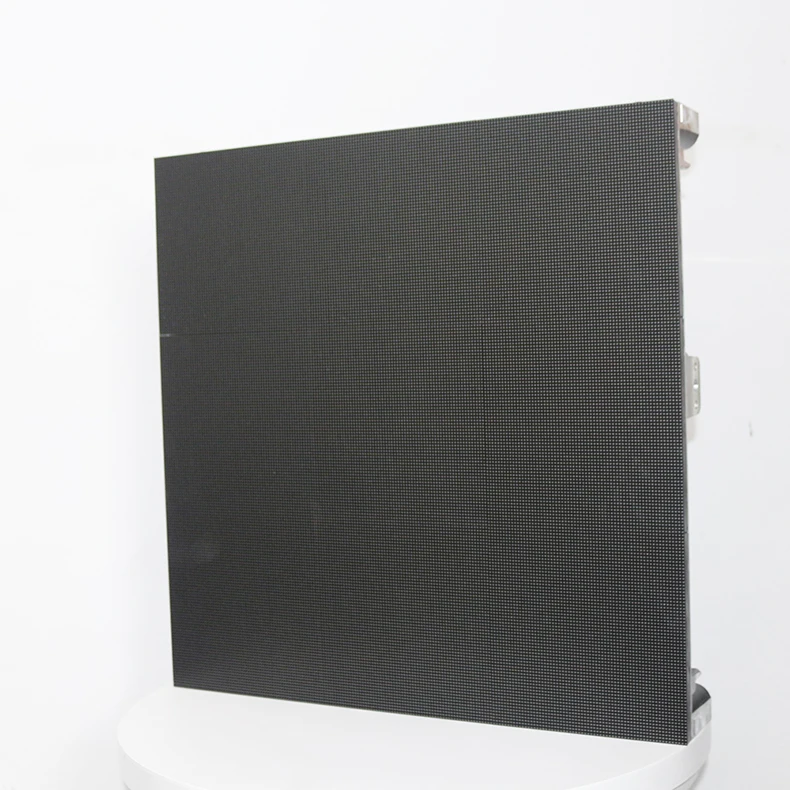

P3 Die-casting Aluminum cabinet specific

* pixel pitch 3mm
*Modules size 192*192mm
*cabinet size 576*576mm (768*768mm Optional)(Please contact me. then I can advise the Cabinet size and other parts to you.).
 * High brightness , high refresh rate.
 * Nova star/Linsn control system
*indoor outdoor led screen
*control model:Support Phone,PC,WIFI ,Live etc all signals model input* Specially use for TV studio, conference center,monitoring center and cinema, museum, studio.etc.
* Seamless connection, high contrast
 ratio, high refresh rate

Specification

576576mm/768768mm Die-casting Aluminum Cabinet LED Display Series
ITEM	UNIT	P3	P6
Pixel Pitch	mm	3	6
Pixel Matrix Per	Pixel/sqm	111111dots	27777dots
Pixel Configuration	N/A	RGB	RGB
Module Pixel structure	N/A	KingLight SMD2121	KingLight SMD3528
View distance	meters	≥2m	≥6m
Drive type	constant drive	IC 2037/5124	IC2037/5020
Scan	N/A	1/16	1/16
Power Supply	W	300W5V60A	300W5V60A
Module Dimension	mm	192*192	192*192
Screen Dimension	mm	576576mm/768768mm	576576mm/768768mm
Cabinet Dimension	mm	576576mm/768768mm	576576mm/768768mm
Cabinet Resolution	Pixel	192192/256256	9696/128128
Port type	N/A	Hub 75	Hub 75
Cabinet Weight	kg	13kg	＜13kg
Service Access	N/A	Rear/Front	Rear/Front
View angle	°	160°/ 140°	160°/ 140°
Refresh Rate	Hz	1920/3840	1920/3840
Brightness	nits	≥2000cd/sqm	≥2000cd/sqm
Grey Scale (bit)	bit	16	16
IP Rate	IP	IP33	IP33
Life span	hrs	100000 hrs	100000 hrs
Working Temperature	℃	-10-40 ℃
Storage Temperature	℃	-20-60 ℃
Power Supply	V	AC100-240V(50-60Hz)
Color temperature	N/A	3000-10000 K(adjustable)
Package	N/A	Flight case/wooden case

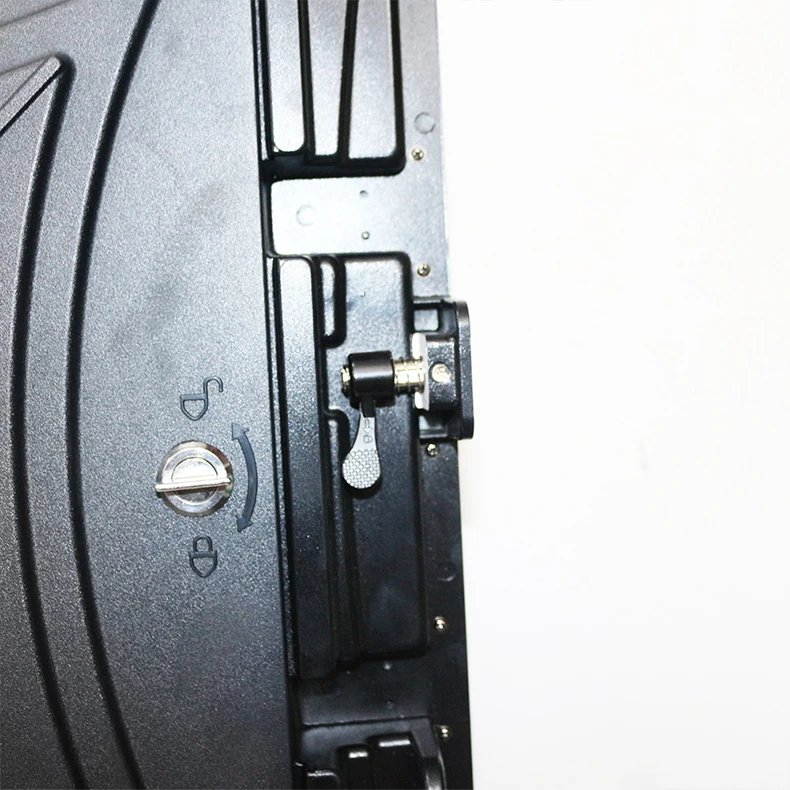

LED Display Seamless Splicing

* Slim and light weight, quick disassembly.
 * Weight: about 12kg/cabinet,one person can carry, saving time and effort.
 * High degree of protection, high durability.

Packing & Delivery

Flight Case,Wooden box Or Carton Case
